Product Overview

The PS001 TPMS Relearn Tool is a compact, efficient, and wireless tire pressure monitoring system matching device designed for fast TPMS activation, relearn, and programming.

Equipped with wireless transmission technology and smart app control, the PS001 supports both 315MHz and 433MHz TPMS sensors and is compatible with over 98% of vehicles equipped with factory TPMS systems across Asia, Europe, North America, and domestic markets.

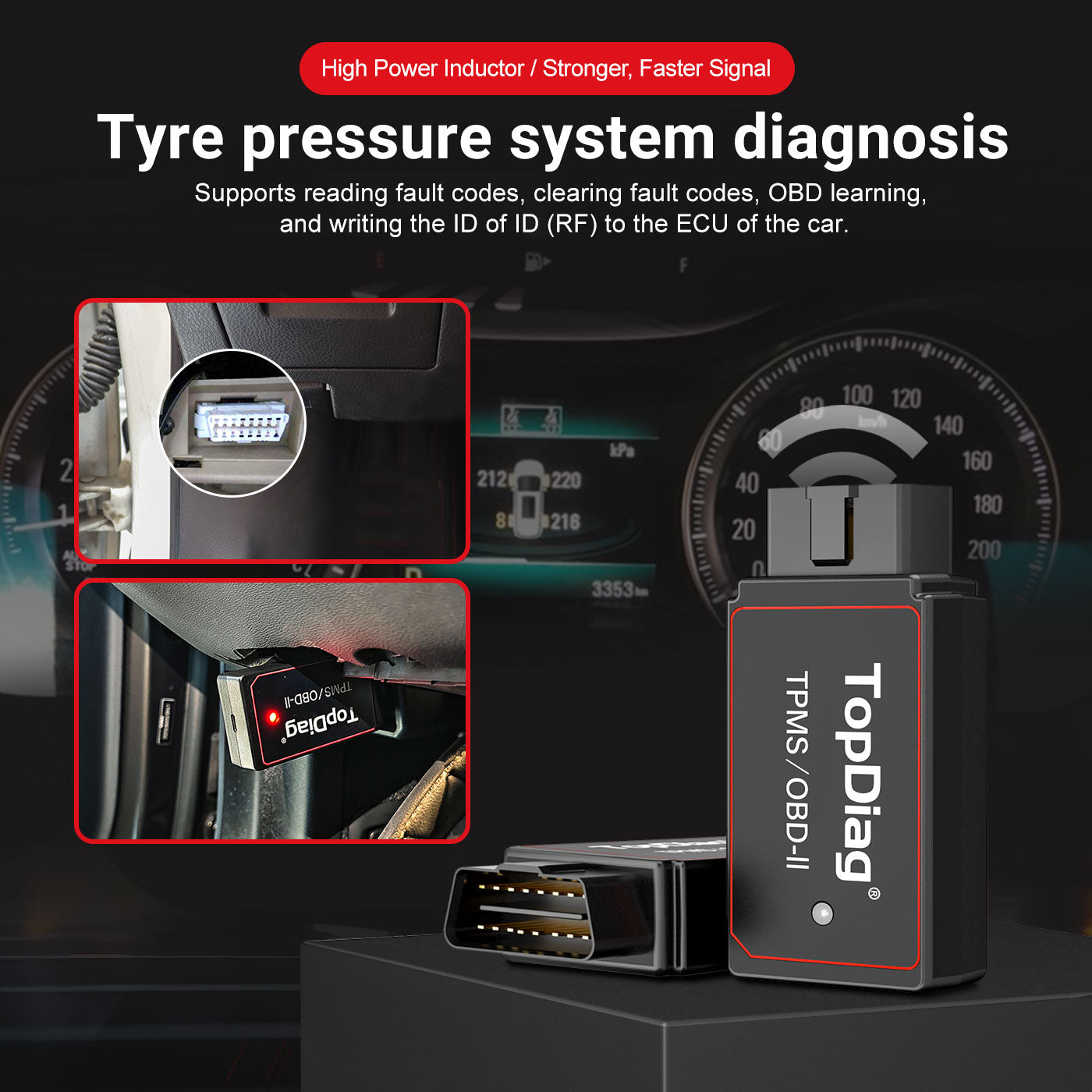

With a simple button-based operation and stable Bluetooth connection, users can quickly read tire pressure data, activate TPMS sensors, and complete TPMS relearn procedures during tire replacement, sensor installation, or routine maintenance. The built-in rechargeable battery and portable design make it suitable for workshops, tire service centers, and professional technicians.

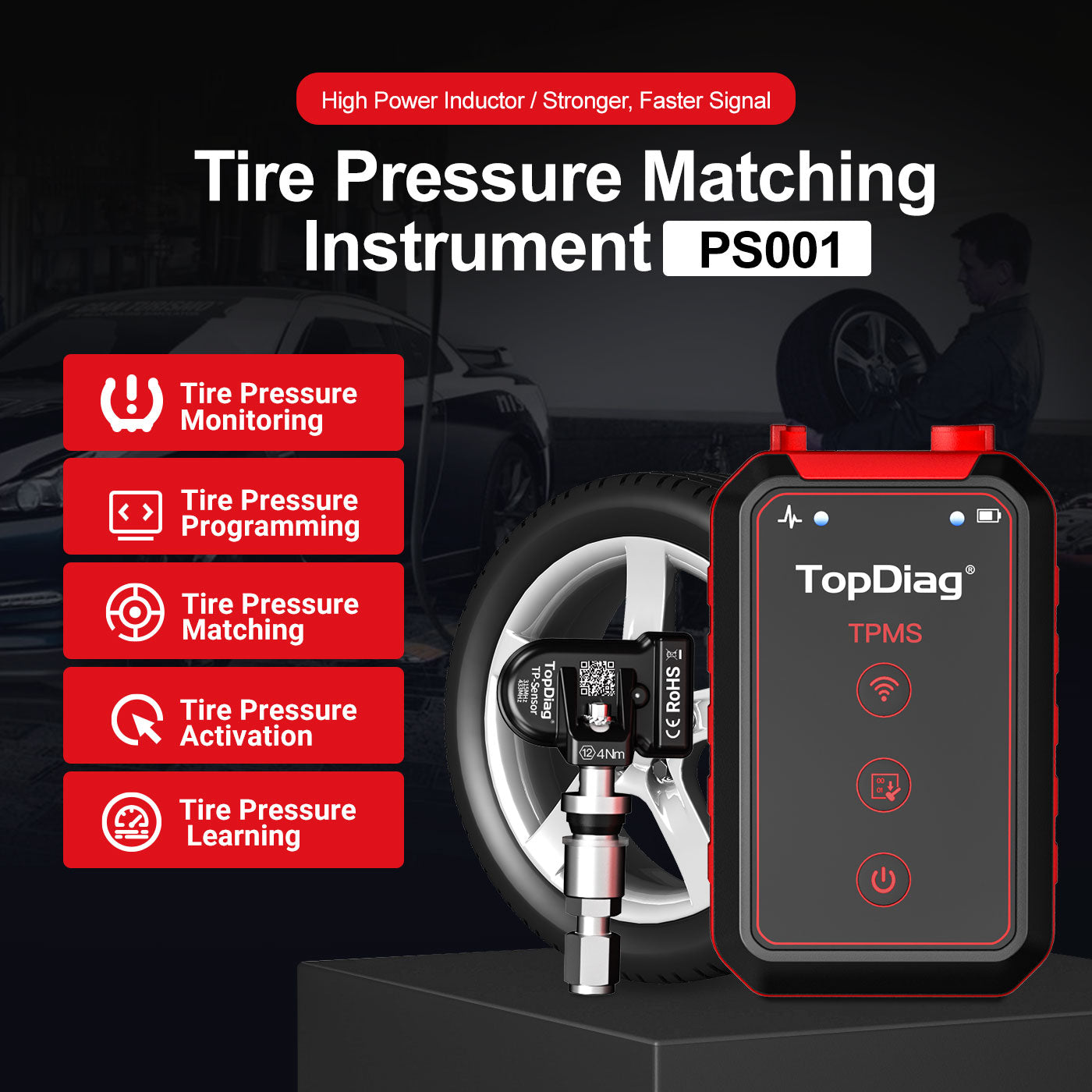

Key Functions

• TPMS Sensor Activation
  Quickly activates TPMS sensors to wake them up during maintenance or replacement.

• TPMS Relearn / Matching
  Supports fast TPMS relearn procedures to match sensors with the vehicle ECU.

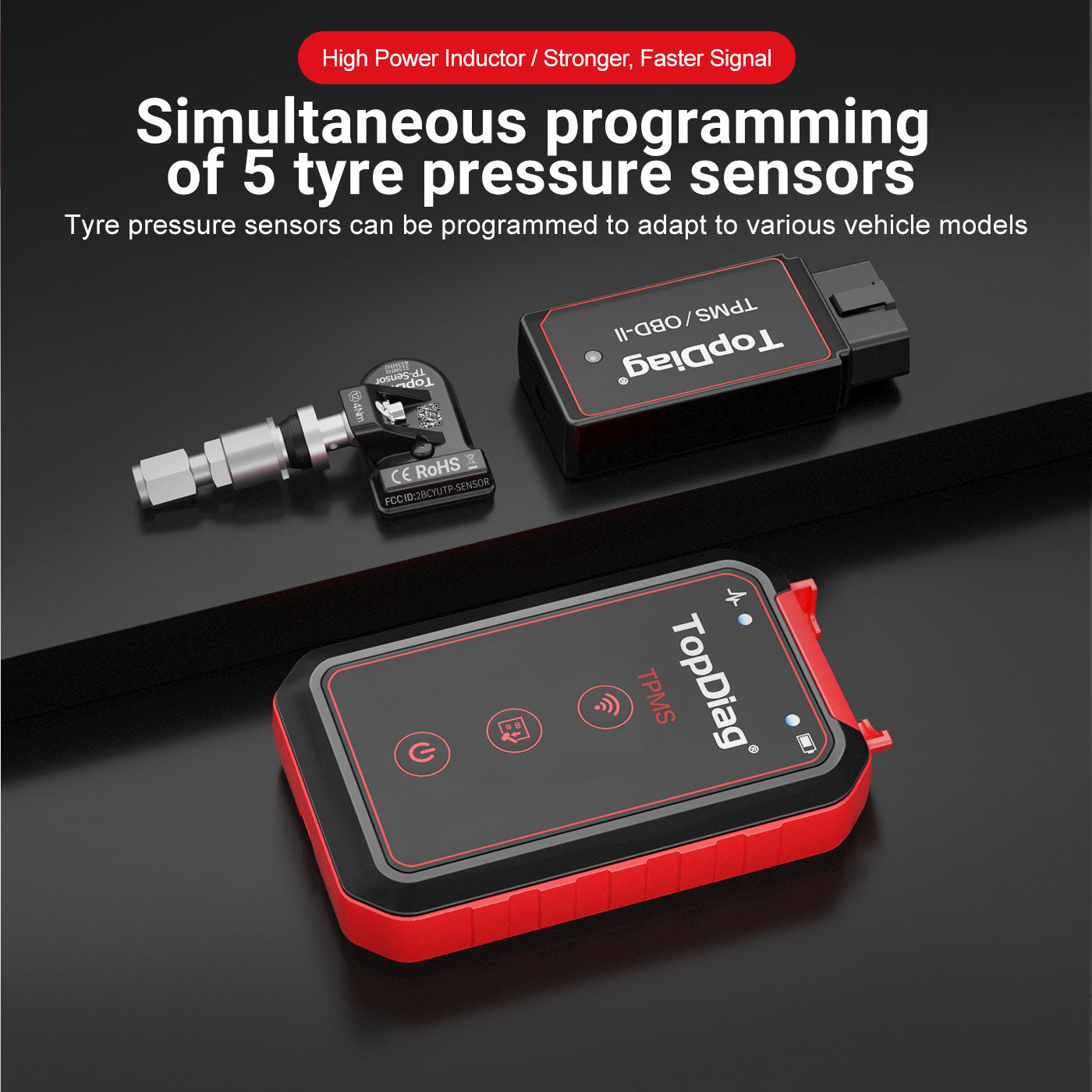

• TPMS Programming
  Allows sensor programming through supported app functions.

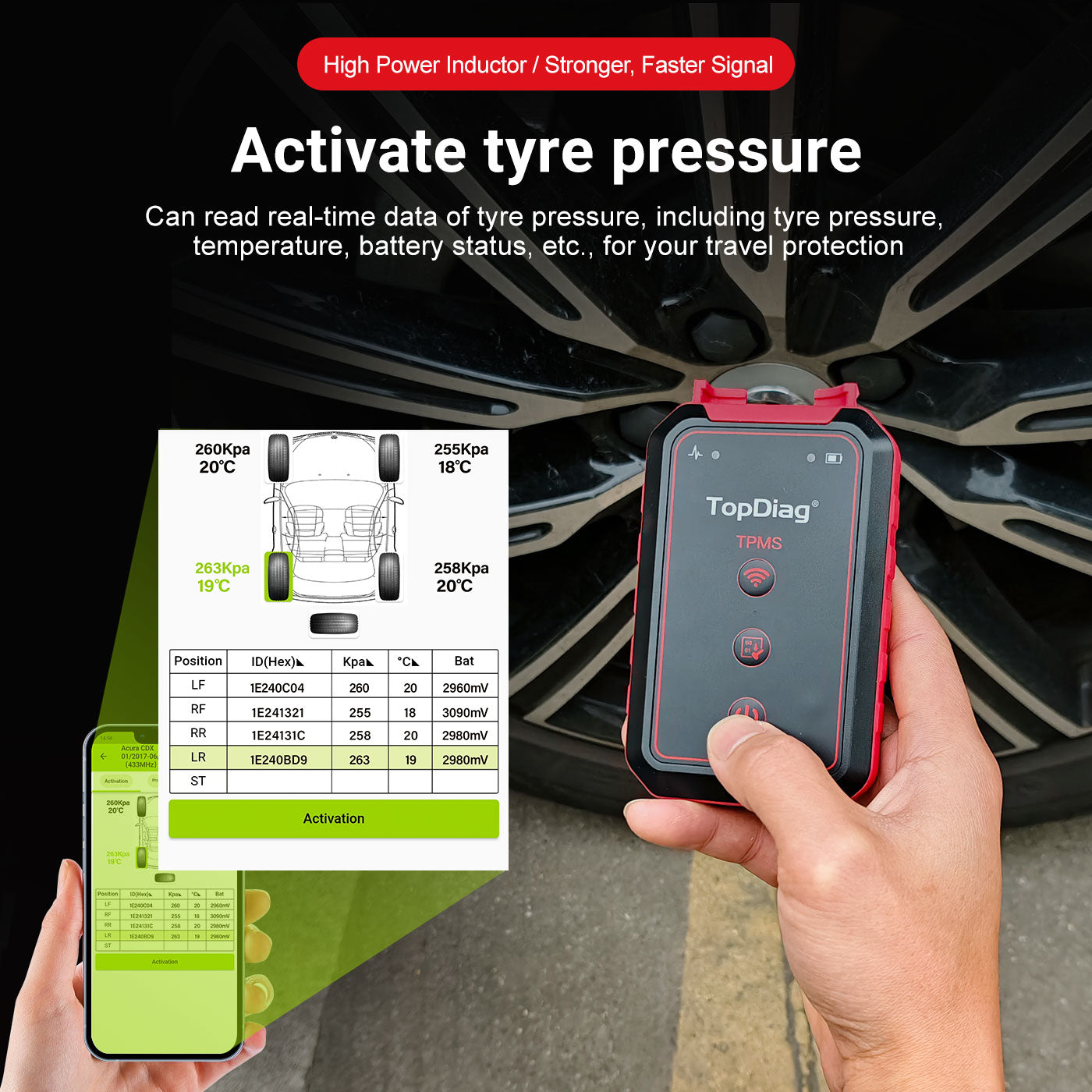

• Tire Pressure Reading
  Reads and displays tire pressure data accurately via smart app.

• Smart App Operation
  Works with iOS and Android devices for easy operation and data display.

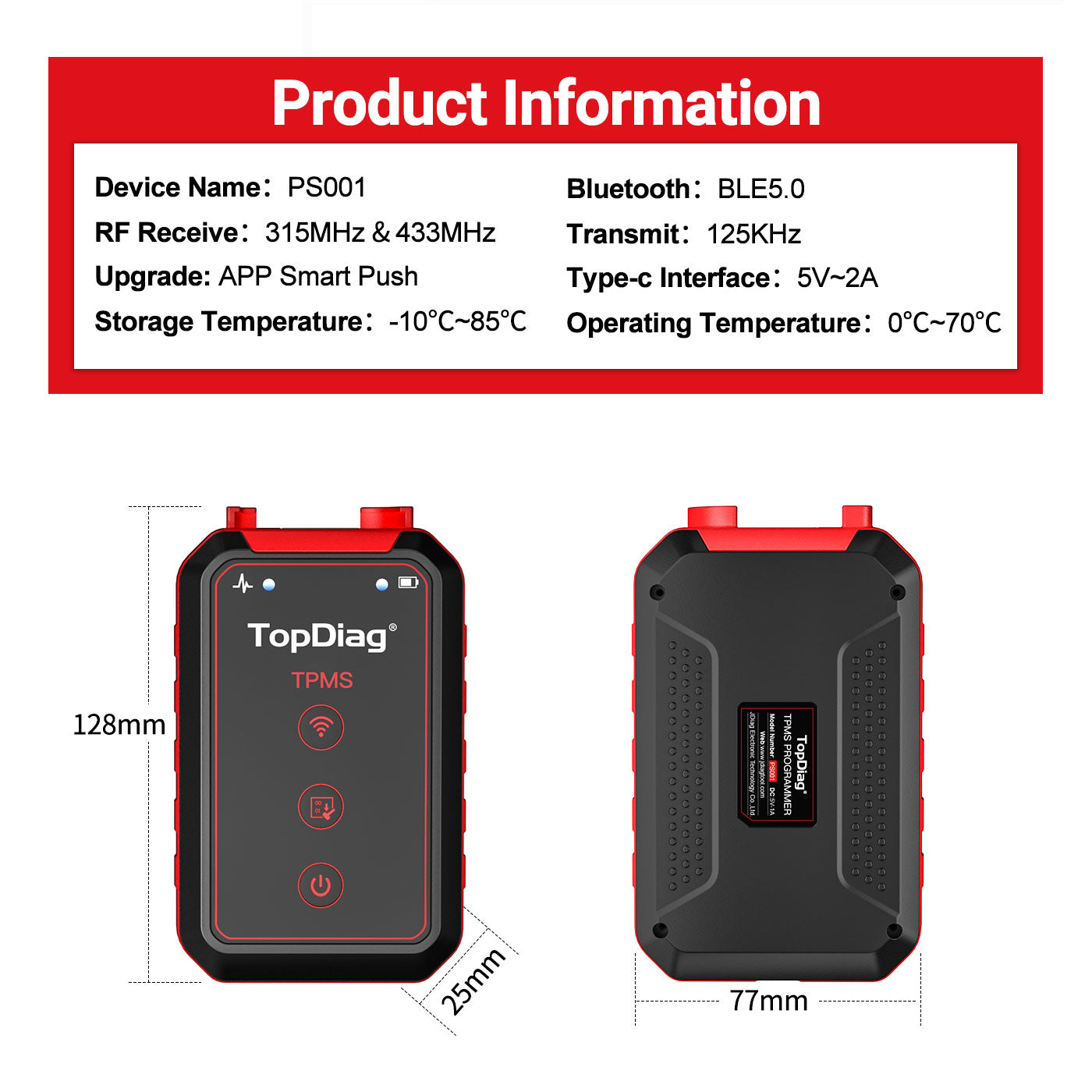

Product Specifications

Device

• Model: PS001

• Wireless Technology: Bluetooth 5.0

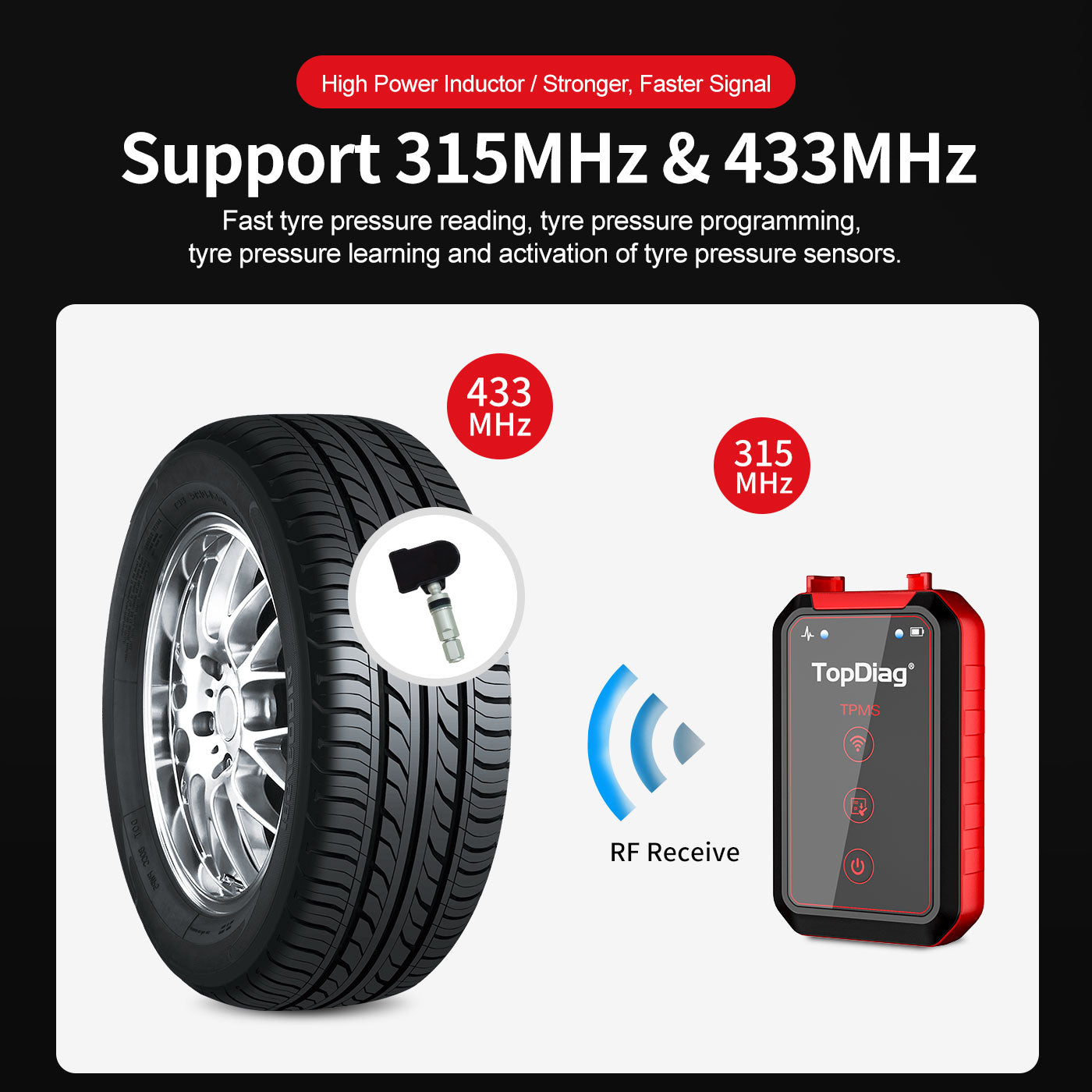

• Supported Sensor Frequencies: 315MHz / 433MHz

• Transmission Frequency: 125KHz

Battery & Charging

• Battery Capacity: 3.7V / 950mAh

• Charging Port: Type-C

• Input Power: 5V ⎓ 2A

Operating Conditions

• Operating Temperature: 0°C – 70°C

• Storage Temperature: -10°C – 85°C

App & Compatibility

• Mobile App: iOS & Android

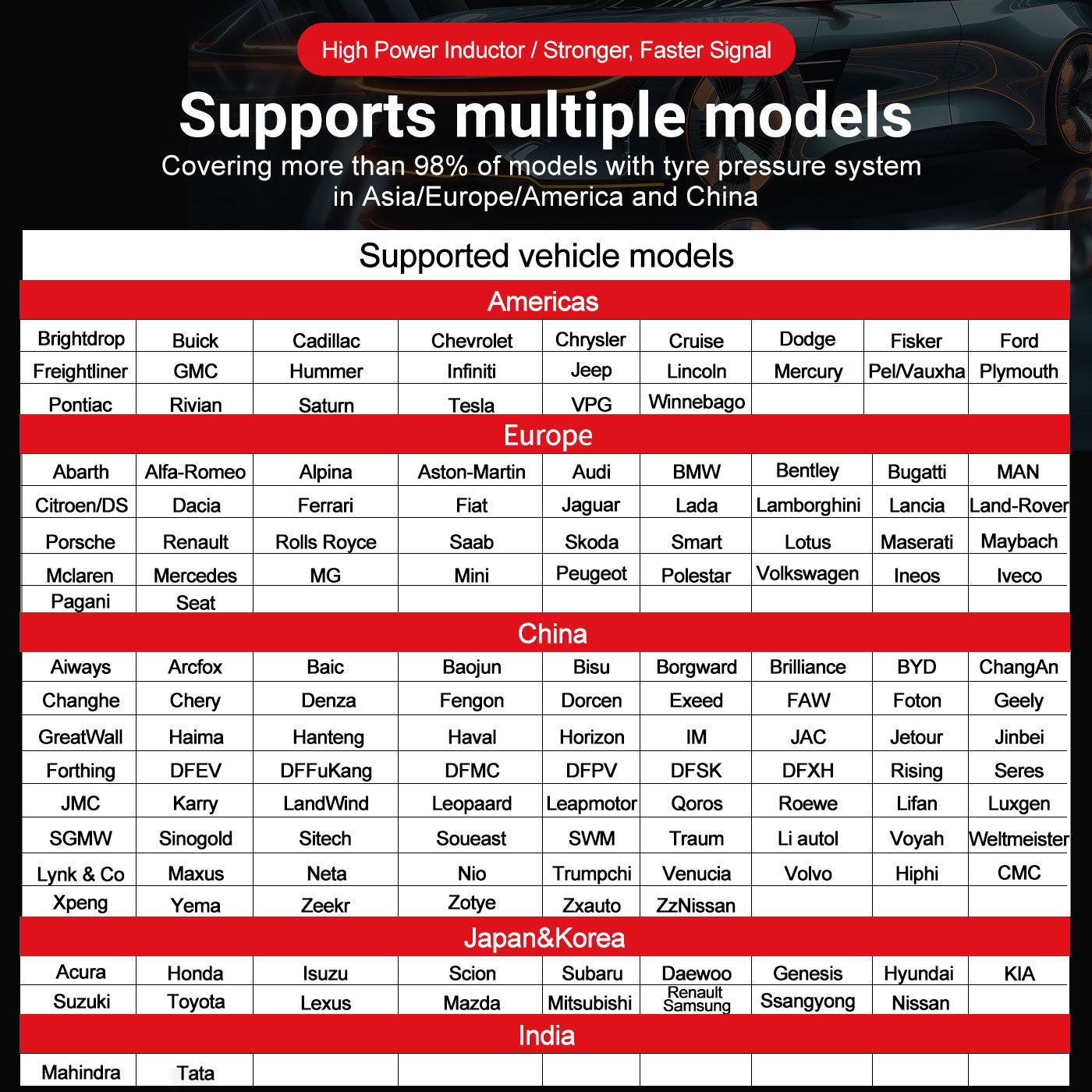

• Vehicle Coverage: 98%+ TPMS-equipped vehicles

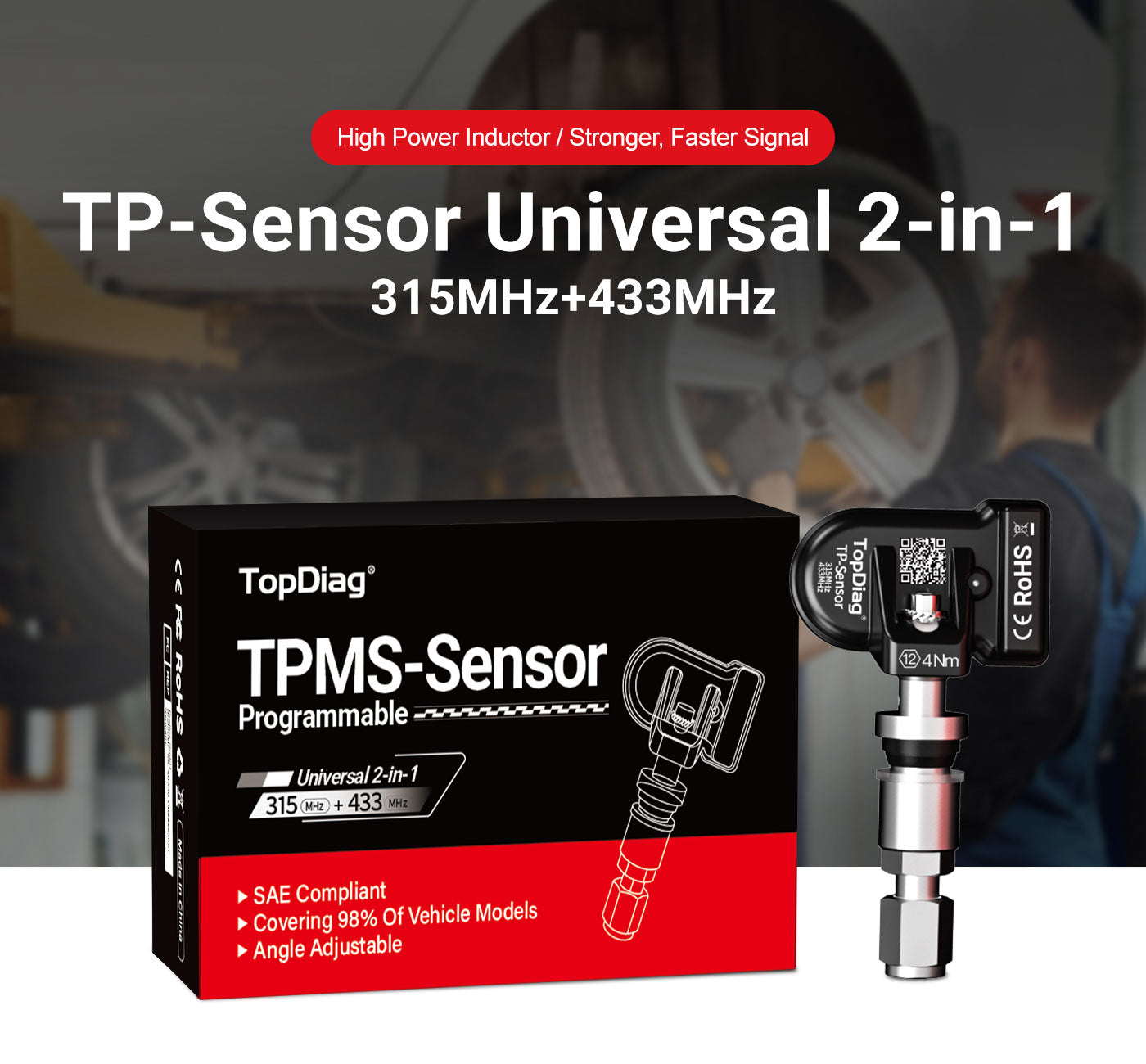

TPMS Sensor (Reference)

• Sensor Type: Universal TPMS Sensor

• Operating Frequency: 315MHz / 433.92MHz

• Pressure Range: 0 – 800 kPa

• Waterproof Rating: IP67

• Operating Temperature: -40°C – 125°C
